PROBE for POWER ELECTRONICS

POWER ELECTRONICS APPLICATION


HIGH VOLTAGE PROBE

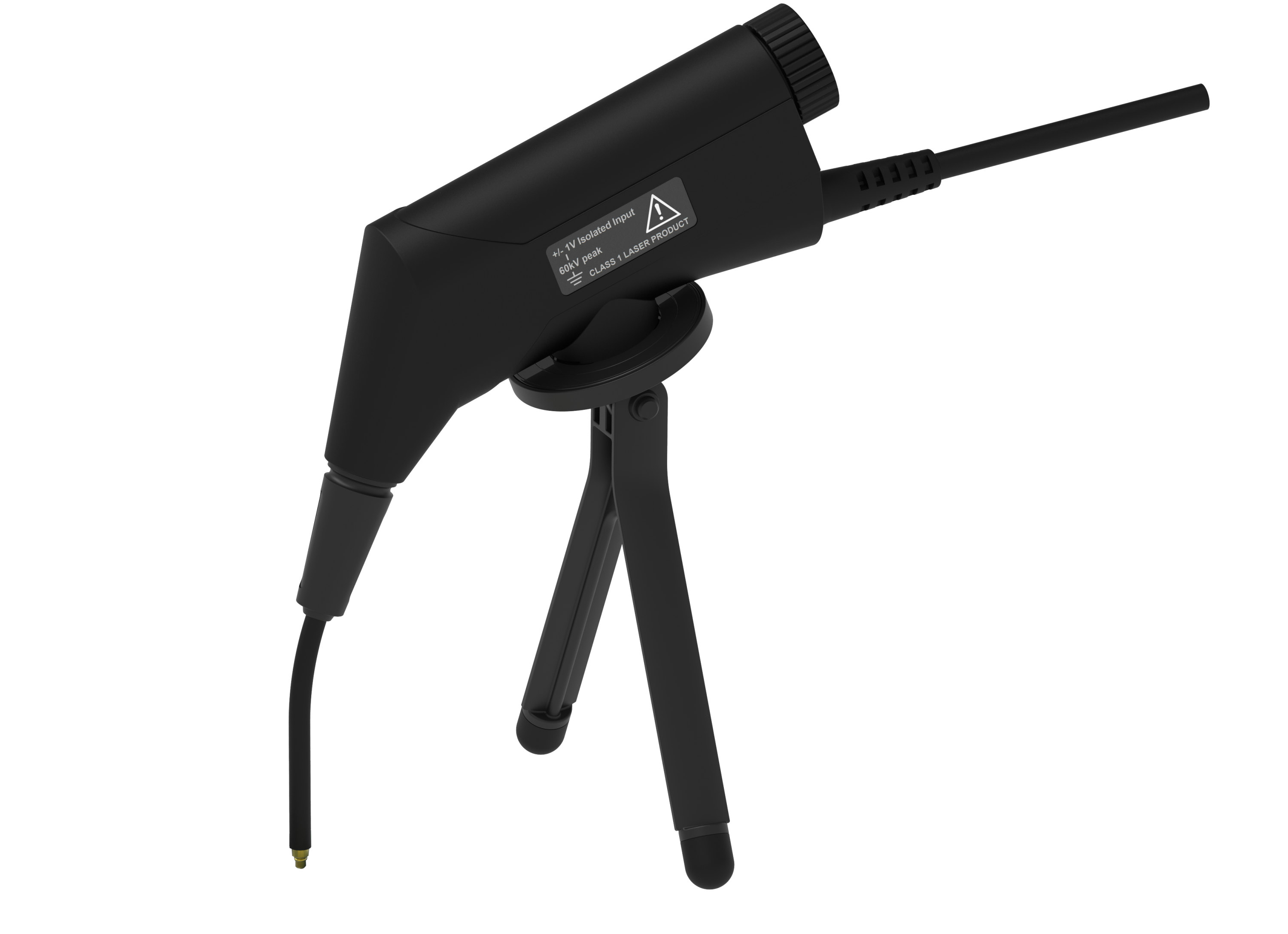

ISOLATED PROBES
ISOLATED PROBES
  • BAND WIDTH: 1.5GHz
  • VOLTAGE: 2500V

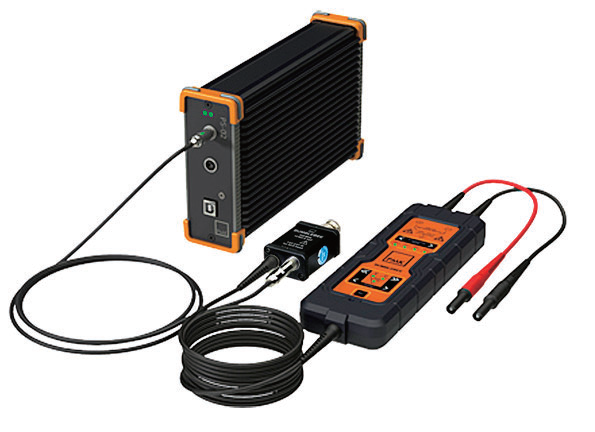

DIFFERENTIAL PROBES
DIFFERENTIAL PROBES
  • BAND WIDTH: 500MHz
  • VOLTAGE: 4 KV
HIGH VOLTAGE PROBES
HIGH VOLTAGE PROBES
  • BAND WIDTH: 400MHz
  • VOLTAGE: 60kV
ISOLATION PROBE
ISOLATION PROBE

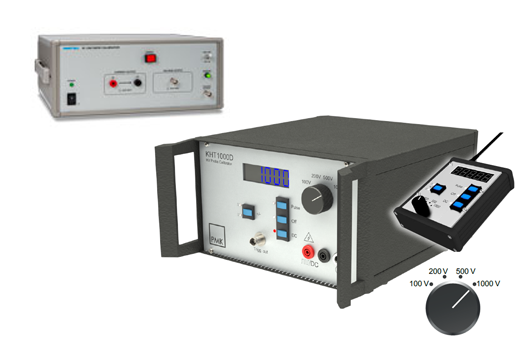

PROBE CALIBRATOR
PROBE CALIBRATOR

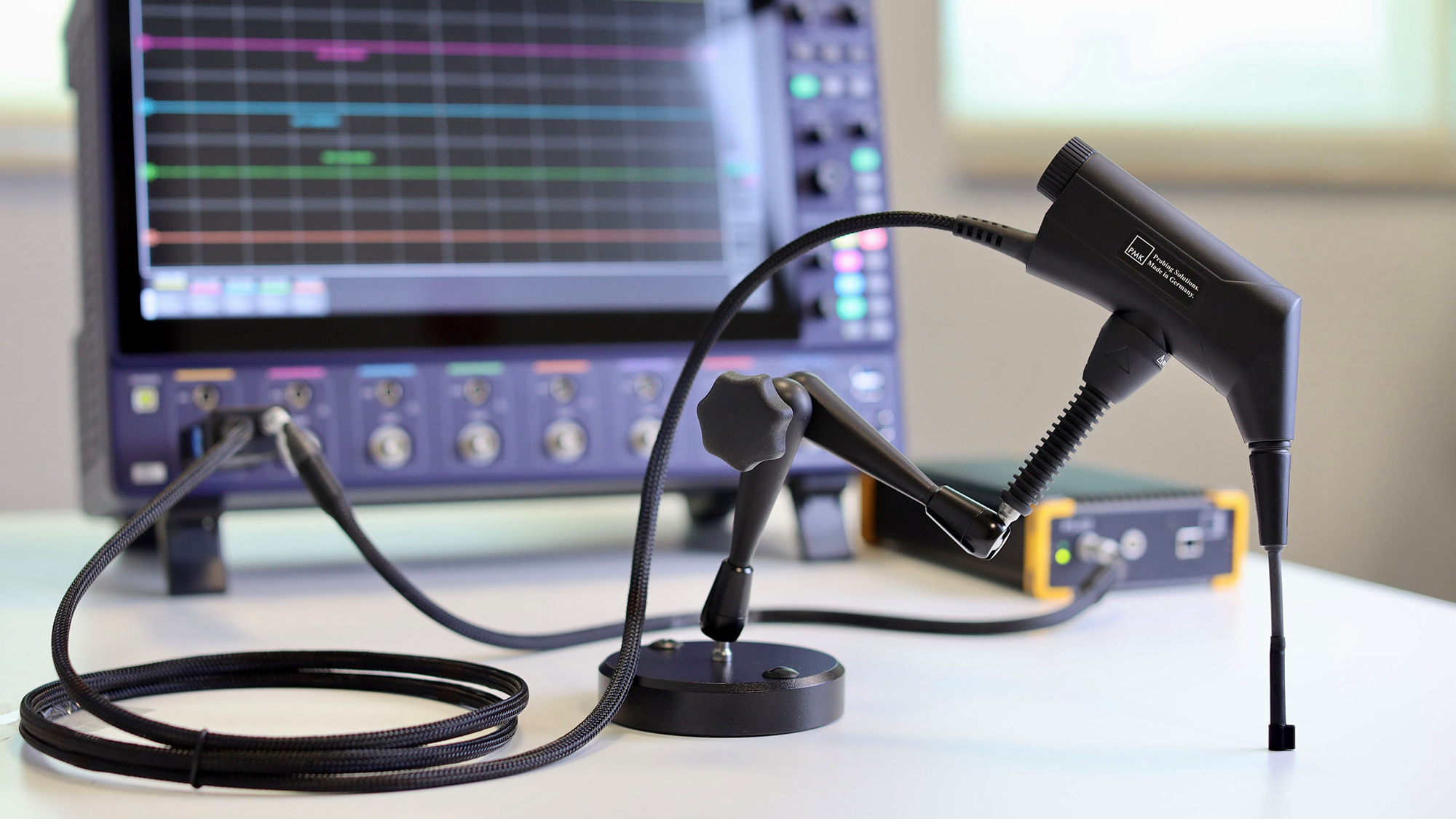

OPTICAL ISOLATION PROBE

PMK Firefly FF-1500A

■ Ideal for GaN / SiC characterization
■ >1.5GHz Bandwidth
■ >180dB CMRR
■ Stable over wide Temperature Range
■ ±60kV CM Voltage, ±1V to ±2.5kV Differential
■ Universal BNC - Use with any Oscilloscope

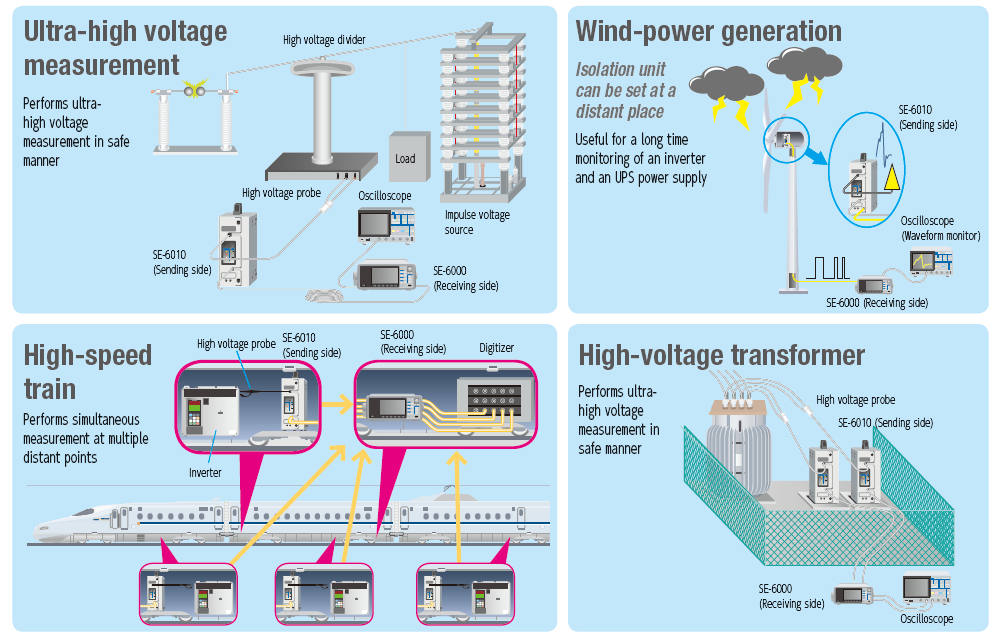

OPTICAL ISOLATION PROBE

slide_28_img_03.png slide_28_img_04.png

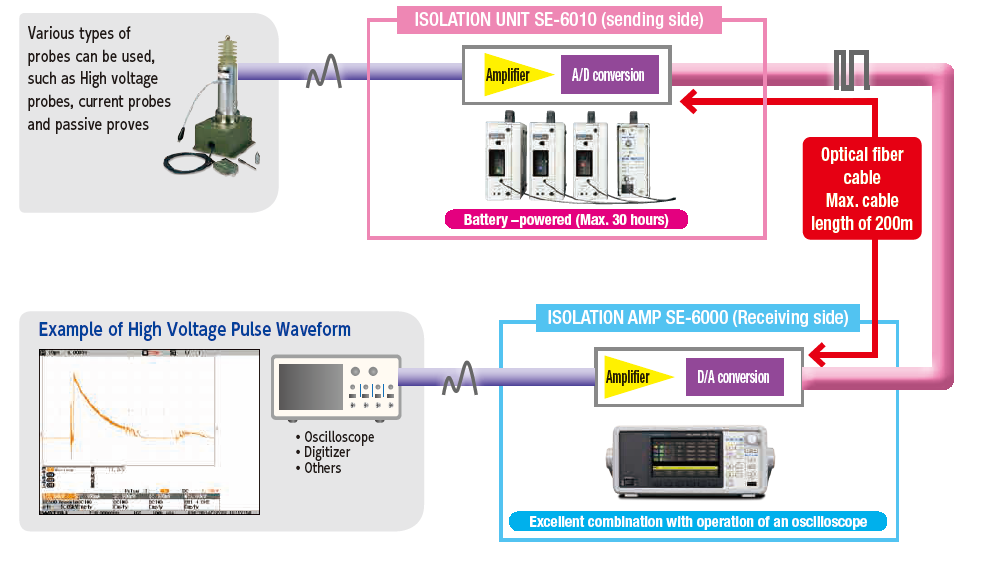

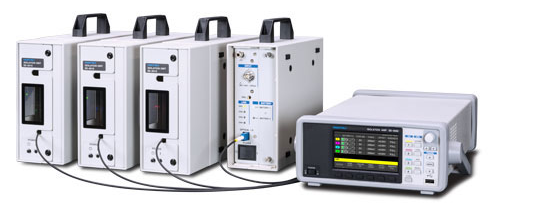

SE-6000

■ 30MHz Bandwidth
■ All unit are isolated by optical fiber cable
■ 1MΩinput　same as oscilloscope input
■ Oscilloscope probes are available
■ Remote probing by using up to 200m optical cable

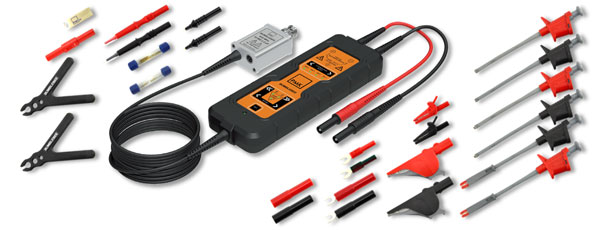

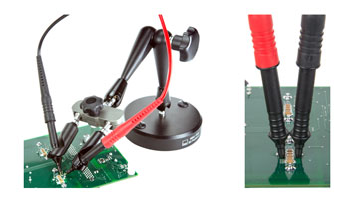

HIGH VOLTAGE DIFFERENTIAL PROBE (2kV)

slide_29_img_05.png slide_29_img_06.png
PMK BUMBLLEBEE

■ Broadband 500MHz
■ 2 kV compatible (2 kV type)
■ High CMRR
■ 4-type attenuation
■ ４Models　Lineup
■ Can be used with any measurement equipment with 50Ω input

± 2000 V ± 1000 V ± 400 V ± 200 V
Article number 880-102-501
880-106-501
880-107-501		 880-132-501
880-137-501		 880-122-501
880-127-501		 880-112-501
880-117-501
Attenuation*
(< ± 1 % guaranteed)		 500:1, 250:1, 100:1, 50:1 250:1, 125:1, 50:1, 25:1 100:1, 50:1, 20:1, 10:1 50:1, 25:1, 10:1, 5:1
Bandwidth* (-3 dB) Small
Signal (guaranteed)		 250:1, 500:1: 400 MHz
50:1, 100:1: 400 MHz		 250:1, 125:1: 500 MHz
50:1, 25:1: 400 MHz		 100:1, 50:1: 500 MHz
20:1, 10:1: 400 MHz		 50:1, 25:1: 500 MHz
10:1, 5:1: 400 MHz
Rise time (10 % - 90 %)
Small Signal		 250:1, 500:1: 0.9 ns
50:1, 100:1: 1.0 ns		 250:1, 125:1: 0.8 ns
50:1, 25:1: 0.95 ns		 100:1, 50:1: 0.8 ns
20:1, 10:1: 0.95 ns		 50:1, 25:1: 0.8 ns
10:1, 5:1: 0.95 ns

HIGH VOLTAGE DIFFERENTIAL PROBE (Competition)

2kV Probe
MAKER LECROY KEYSIGHT PMK PMK PMK PMK
TYPE HVD3220 DP0001A BumbleBee BumbleBee BumbleBee BumbleBee
BAND WIDTH 400MHz 400MHz 400MHz 500MHz 500MHz 500MHz
VOLTAGE RANGE 2kV 2kV 2kV 1kV 400V 200V
CONECTIVITY PROBE-BUS PROBE-BUS ANY-SCOPE ANY-SCOPE ANY-SCOPE ANY-SCOPE
4kV Probe
MAKER TEKTRONIX KEYSIGHT LECROY PMK PMK PMK
TYPE THDP0200 N2790A HVD3106A BumbleBee BumbleBee BumbleBee
BAND WIDTH 200MHz 100MHz 120MHz 500MHz 500MHz 500MHz
CONECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE ANY-SCOPE ANY-SCOPE
VOLTAGE RANGE 1.5kV 1.4kV 1.5kV 1kV 400V 200V

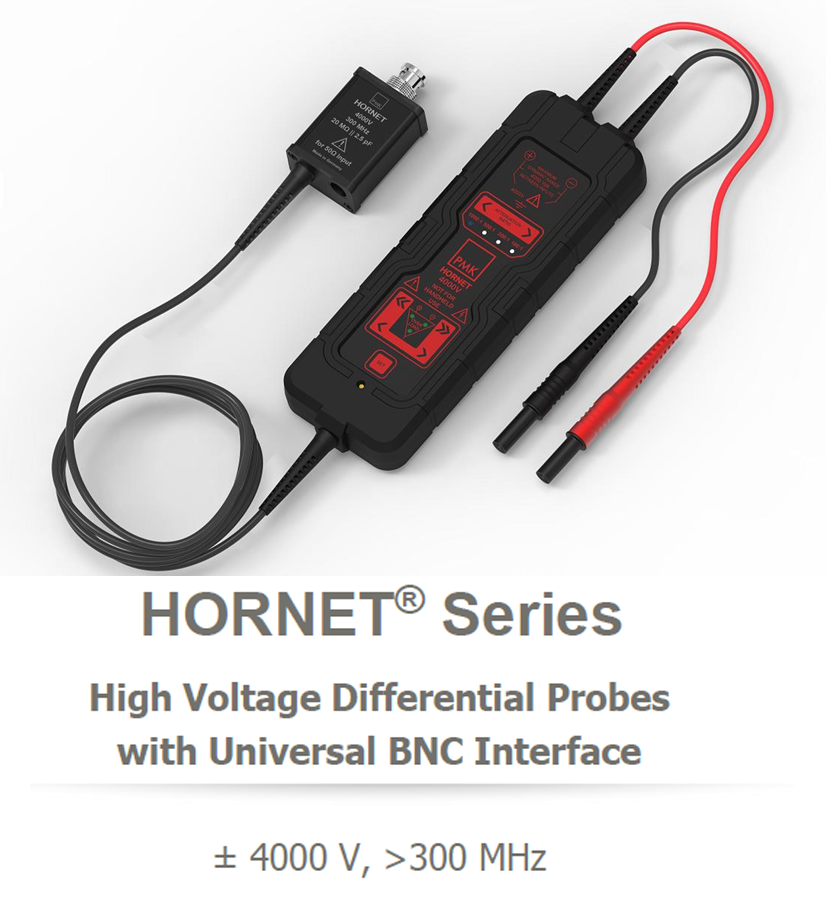

HIGH VOLTAGE DIFFERENTIAL PROBE

PMK HORNET

■ Ideal for switching power supplies,
■ IGBTs, Si / SiC power devices
■ ±4000V Input voltage
■ Each with four user selectable Input attenuator ranges
■ >300MHz bandwidth
■ High CMRR
■ For tester applications

MAKER LECROY PMK
TYPE HVD3605A HORNET
BAND WIDTH 100MHz 300MHz
VOLTAGE RANGE 7kV 4kV
CONECTIVITY PROBE-BUS ANY-SCOPE

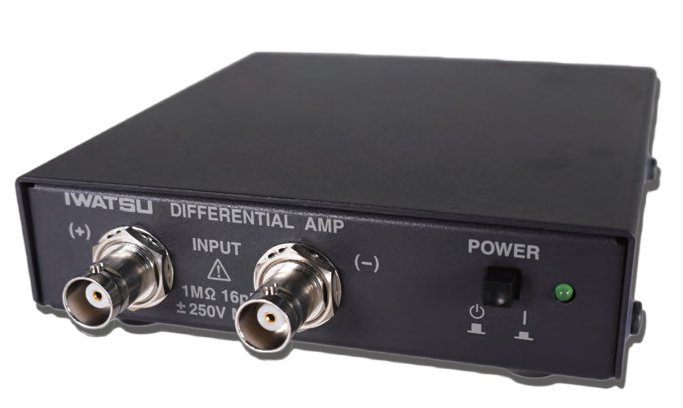

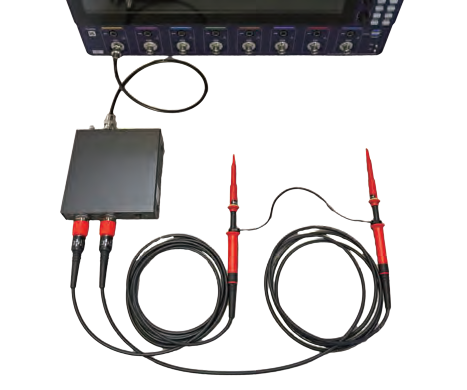

DIFFERENTIAL AMPLIFIER SS-331/SS-332

slide_32_img_02.png slide_32_img_03.png

■ Frequency bandwidth　DC - 400MHz
■ 2type (SS-331 10:1 / SS-332 20:1)
■ Any passive probe available
■ Connect with any scope(50ohm input)

To connect with pair of probes with SS-33X, using
this system like differential probe.

■ 60kV differential probe(with HV-P60 X 2pcs)
■ High temperature differential probe(ENVI X 2pcs)

HIGH VOLTAGE PROBE

PHVX
PHVX
  • Input voltage: 4kV
  • Bandwidth: DC-600MHz
  • Ratio: 100:1
  • Cable length: 2m-5m
PHV-1000
PHV-1000
  • Input voltage: 1 kV (CAT2), 2 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 2 m - 5m
PHV-2000
PHV-2000
  • Input voltage: 1 KV (CAT2), 4 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 2 m - 5m
PHVS-2000
PHVS-2000
  • Input voltage: 1kV (CAT2), 4 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 1000:1
  • Cable Length: 2 m - 5m
PHV-660
PHV-660
  • Input voltage: 6 KV
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 1.2 m - 5m
PHVS-660
PHVS-660
  • Input voltage: 6 KV
  • Bandwidth: DC-400 MHz
  • Ratio: 1000:1
  • Cable Length: 1.2 m - 5m

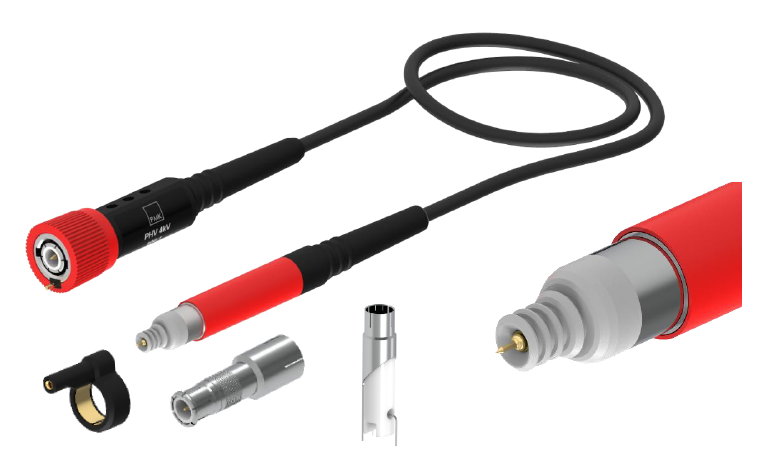

HIGH VOLTAGE PROBE

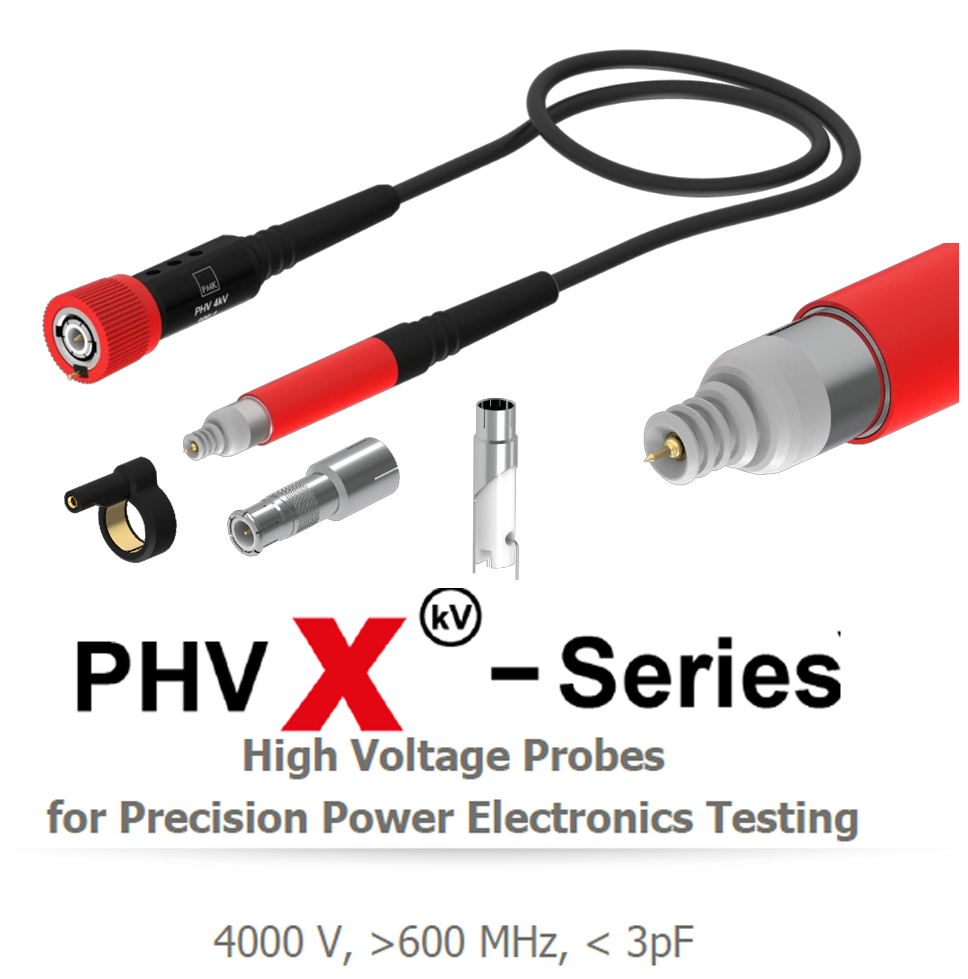

PHVX

■ Ideal for switching power supplies, IGBTs, Si /SiC power components
■ 4000V input voltage, 100:1
■ >600MHz bandwidth
■ <3pF input capacitance
■ 50MΩ Input Impedance
■ Compact form factor
■ Variety of Accessories for individual Contacting
■ Universal Use with BNC Connector
■ Output Termination 1MΩ
■ For tester applications8kV model will be launched.

Models PHVX4kV type
Article numbers 2 PHVX4kV-2-0
PHVX4kV-2-0-RO
PHVX4kV-2-S
PHVX4kV-2-S-RO		 PHVX4kV-3-0
PHVX4kV-3-0-RO
PHVX4kV-3-S
PHVX4kV-3-S-RO		 PHVX4kV-5-0
PHVX4kV-5-0-RO
PHVX4kV-5-S
PHVX4kV-5-S-RO
Cable Length 2m 3m 5m
Bandwidth* (-3 dB)
Small Signal (guaranteed)		 > 600 MHz > 600 MHz TBD
Rise time (10 % - 90 %)
Large Signal		 < 800 ps < 800 ps TBD

HIGH VOLTAGE PROBE

PHV1000

■ Ideal for switching power supplies, IGBTs, Si /SiC power components
■ 4000V input voltage, 100:1
■ >600MHz bandwidth
■ <3pF input capacitance
■ 50MΩ Input Impedance
■ Compact form factor
■ Variety of Accessories for individual Contacting
■ Universal Use with BNC Connector
■ Output Termination 1MΩ
■ For tester applications8kV model will be launched.

Models PHVX4kV type
Article numbers 2 PHVX4kV-2-0
PHVX4kV-2-0-RO
PHVX4kV-2-S
PHVX4kV-2-S-RO 		PHVX4kV-3-0
PHVX4kV-3-0-RO
PHVX4kV-3-S
PHVX4kV-3-S-RO 		PHVX4kV-5-0
PHVX4kV-5-0-RO
PHVX4kV-5-S
PHVX4kV-5-S-RO
Cable Length 2m 3m 5m
Bandwidth* (-3 dB)
Small Signal (guaranteed)		 > 600 MHz > 600 MHz TBD
Rise time (10 % - 90 %)
Large Signal		 < 800 ps < 800 ps TBD

HIGH VOLTAGE DIFFERENTIAL PROBE (Competition)

2kV Probe
MAKER TEKTRONIX TEKTRONIX TEKTRONIX TEKTRONIX PMK
TYPE P5122 P5100A P5150 TPP0850 PHV1000-RO
BAND WIDTH 200MHz 500MHz 500MHz 800MHz 400MHz
RATIO 100:1 100:1 100:1 100:1 100:1
VOLTAGE RANGE 1kV 2.5kV 2.5kV 2.5kV 2kV
RMS (CAT II) 1kV 1kV 1kV 1kV 1kV
CONECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE
4kV Probe
MAKER LECROY KEYSIGHT PMK PMK
TYPE 10076C PPE4kV PHV2000-RO PHVX4kV-2-RO
BAND WIDTH 500MHz 400MHz 400MHz 600MHz
RATIO 100:1 100:1 100:1 100:1
VOLTAGE RANGE 3.7kV 4kV 4kV 4kV
RMS (CAT II) 1kV - 1kV -
CONECTIVITY PROBE-BUS PROBE-BUS ANY-SCOPE ANY-SCOPE

HIGH VOLTAGE PROBE

HV-P30/60
HV-P30/60
  • Input voltage: 30 kV (HV-P30), 60kV (HV-P60)
  • Bandwidth: DC-50MHz
  • Ratio: 1000:1 (HV-P30), 2000:1 (HV-P60)
PHV-1000
PHV-1000
  • Input voltage: 1 KV (CAT2), 2 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 2 m - 5m
PHV-2000
PHV-2000
  • Input voltage: 1 KV (CAT2), 4 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 2 m - 5m
PHVS-2000
PHVS-2000
  • Input voltage: 1 KV (CAT2), 4 KV (Non CAT)
  • Bandwidth: DC-400 MHz
  • Ratio: 1000:1
  • Cable Length: 2 m - 5m
PHV-660
PHV-660
  • Input voltage: 6 KV
  • Bandwidth: DC-400 MHz
  • Ratio: 100:1
  • Cable Length: 1.2 m - 5m
PHVS-660
PHVS-660
  • Input voltage: 6 KV
  • Bandwidth: DC-400MHz
  • Ratio: 1000:1
  • Cable Length: 1.2 m - 5m
